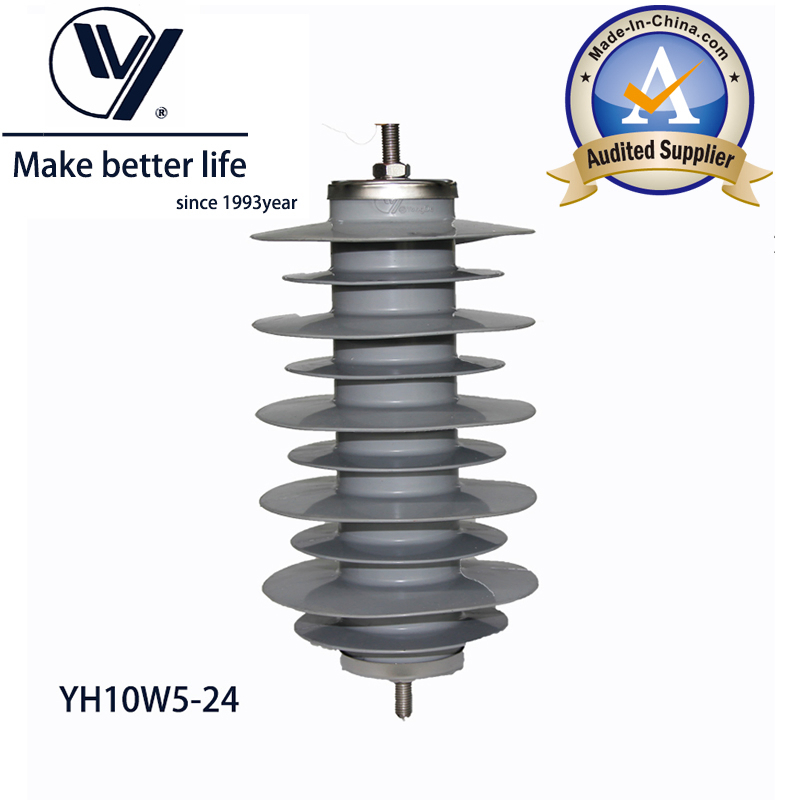

YH10W-24 Gapless Lightning Arrester 10kA 24kV IEC60099-4

MOQ:	30
মূল্য:	1

Detail Information

Product Description

Detail Information

মডেল নং:

YH10W-24

স্রাব বর্তমান:

10kA

ভোল্টেজ:

24KV

শেড ব্যাস:

138/108

উচ্চতা:

266 মিমি

মোট ওজন:

3 কেজি

ক্রিপেজ দূরত্ব:

824 মিমি

দীর্ঘ সময়কাল বর্তমান:

400A

বজ্রপাত প্রতিরোধ সহ্য:

150kV

এমওসিভি:

19.5 কেভি

অবশিষ্ট ভোল্টেজ:

5KA এ 71.5KV

ডিসি রেফারেন্স ভোল্টেজ:

34 কেভি

উচ্চ বর্তমান প্রবণতা:

100kA

পাওয়ার ফ্রিকোয়েন্সি সহ্য করা:

50 কেভি

উপাদান:

দস্তা অক্সাইড

বিশেষভাবে তুলে ধরা:

24kV gapless lightning arrester

10kA substation lightning arrester

IEC60099-4 compliant lightning arrester

Product Description

Gapless Types of Lightning Arrester 10ka, 24kv

Product Specifications

Attribute	Value
Model NO.	YH10W-24
Discharge Current	10ka
Voltage	24kv
Transport Package	Carton
Specification	IEC60099-4
Trademark	YONGDE
Origin	China
HS Code	85354000
Production Capacity	5000/Month

Technical Details

Rated voltage: 24KV

Shed diameter: 138/108

Height: 266mm

Gross weight: 3kg

Creepage distance: 824mm

Long duration current impulse: 400A

Lightning impulse withstand: 145/150KV

Type	YH10W5-24/66
Rated voltage (kV)	24
MOCV (kV)	19.5
Nominal Current (kV)	10
Residual voltage of steep impulse at 5kA (kV)	71.5
8/20µS Residual voltage of lightning impulse current (Peak value) at 5kA (kV)	66
Residual voltage of switching impulse current (peak value) at 1kA (kV)	50
1mA D.C reference voltage (kV)	34
Line discharge level	1
2mS long duration impulse current (A)	400
4/10µS High current impulse (kA)	100
Lightning impulse withstand (kV)	150
Power frequency voltage withstand (dry/wet) (kV)	50
0.1S TOV (kV)	28.8
1S TOV (kV)	27.6
10S TOV (kV)	26.4
1200S TOV (kV)	24
Creepage distance (mm)	824
Material employed in series non-linear resistor	Zinc Oxide

Our Services

Your inquiry related to our products or prices will be replied within 24 hours
Well-trained and experienced staff answer all your questions in fluent English
OEM & ODM services available - we can help design and produce customized products
Distributorship offered for unique designs and current models
Protection of your sales areas, design ideas, and all private information

Purchase Information

100% authentic products - please provide complete address details for shipping cost calculation
Mixed shipments available for different specifications to lower freight costs
Wholesale only - contact us for samples or any questions
